Rear Differential - 1/2 Ton

1960-66 Chevy & GMC Truck

Axle Shaft Specifications 34-2780 Rear Axle Shaft 30 Spline x 30-3/4" OL 6 Lug 12 Bolt x 8-7/8" Ring Gear 2/4WD

Product Details

How to ID Your Rear Axle Ratio
How to ID Your Rear Differential Type

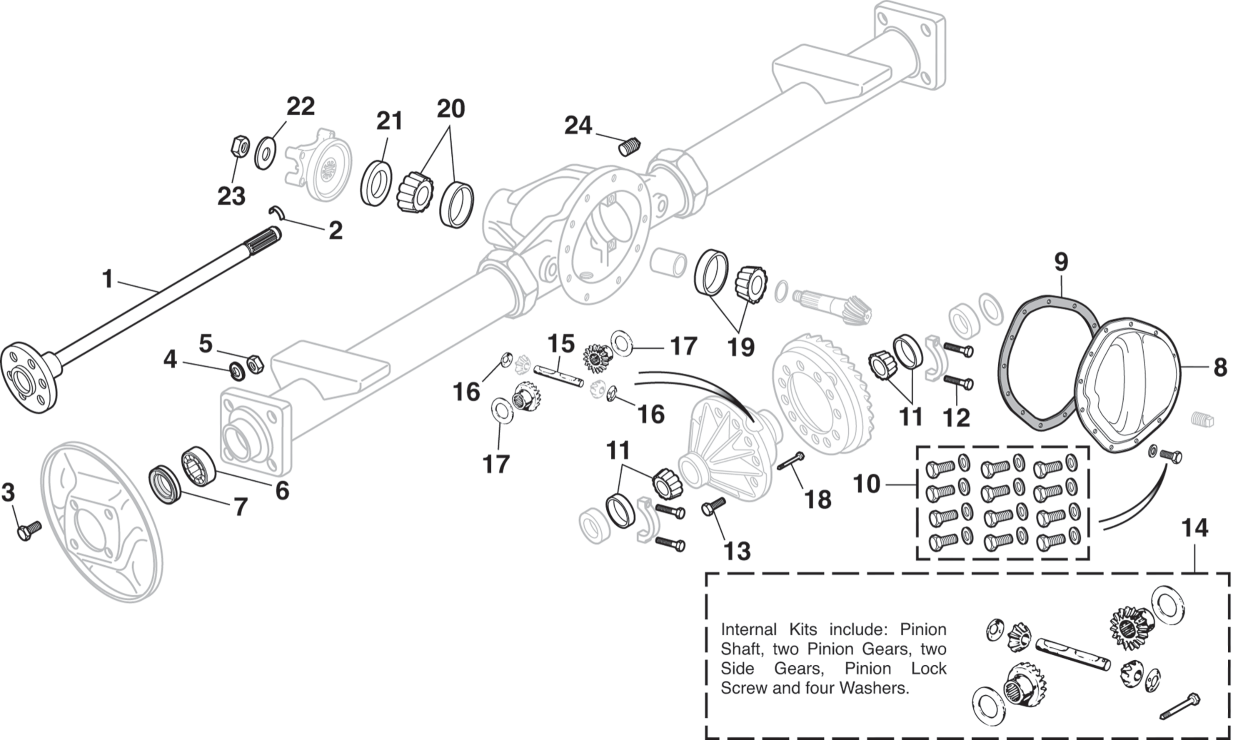

Full Parts List

	Part	Description	Application	Required quantity	Price	Stock status	Qty
1	34-2780	Rear Axle Shaft-30spline"A"	1/2 Ton 65-66	Required Quantity: (2)	$149.95	Availability: In stock	Qty: Qty:
	"A" With GM 12 bolt.
2	30-1614	Lock Clip-Axle	1/2 Ton 60-66	Required Quantity: (2)	$4.25	Availability: In stock	Qty: Qty:
3	30-0281	Brake Plate Bolt	1/2 Ton 60-66	Required Quantity: (8)	$0.95	Availability: In stock	Qty: Qty:
4	30-0646	Lock Washer	1/2 Ton 60-66	Required Quantity: (8)	$1.55	Availability: In stock	Qty: Qty:
5	30-0859	Nut	1/2 Ton 60-66	Required Quantity: (8)	$0.95	Availability: In stock	Qty: Qty:
6	34-0510	Rear Wheel Bearing "B"	1/2 Ton 60-63	Required Quantity: (2)	$89.55	Availability: In stock	Qty: Qty:
	"B" With GM 10 bolt.
	34-0520	Rear Wheel Bearing "A"	1/2 Ton 63-66	Required Quantity: (2)	$11.35	Availability: In stock	Qty: Qty:
	"A" With GM 12 bolt.
	45-0527-C	Rear Wheel Bearing "C"	1/2 Ton 60-66	Required Quantity: (2)	$17.55	Availability: In stock	Qty: Qty:
	"C" With DANA 44.
7	34-0147	Rear Wheel Oil Seal "B"	1/2 Ton 60-63	Required Quantity: (2)	$26.25	Availability: In stock	Qty: Qty:
	"B" With GM 10 bolt.
	34-0143	Rear Wheel Oil Seal "A"	1/2 Ton 63-64	Required Quantity: (2)	$23.95	Availability: In stock	Qty: Qty:
	"A" With GM 12 bolt.
	34-0150	Rear Wheel Oil Seal "A"	1/2 Ton 65-66	Required Quantity: (2)	$2.55	Availability: In stock	Qty: Qty:
	"A" With GM 12 bolt.
	34-0153	Rear Wheel Oil Seal "C"	1/2 Ton 60-66	Required Quantity: (2)	$3.95	Availability: In stock	Qty: Qty:
	"C" With DANA 44.
8	38-1806	Rear Diff Cover-Chrome "A"	1/2 Ton 63-66	Required Quantity: (1)	$23.65	Availability: In stock	Qty: Qty:
	"A" With GM 12 bolt.
	38-1809	Rear Diff Cover-Chrome "C"	1/2 Ton 60-66	Required Quantity: (1)	$26.43	Availability: In stock	Qty: Qty:
	"C" With DANA 44.
9	30-4354	Gasket-Cover "A"	1/2 Ton 63-66	Required Quantity: (1)	$2.99	Availability: In stock	Qty: Qty:
	"A" With GM 12 bolt.
	30-4390	Gasket-Cover "C"	1/2 Ton 60-66	Required Quantity: (1)	$2.95	Availability: In stock	Qty: Qty:
	"C" With DANA 44.
10	30-2543	Bolt Set-Chrome	1/2 Ton 60-66	Required Quantity: (1)	$7.95	Availability: In stock	Qty: Qty:
11	34-0491	Side Bearing "A"	1/2 Ton 63-66	Required Quantity: (2)	$16.95	Availability: In stock	Qty: Qty:
	"A" With GM 12 bolt.
12	30-0255	Bolt	1/2 Ton 63-66	Required Quantity: (4)	$2.55	Availability: In stock	Qty: Qty:
13	30-0280	Ring Gear Bolt "A"	1/2 Ton 63-66	Required Quantity: (12)	$1.30	Availability: In stock	Qty: Qty:
	"A" With GM 12 bolt.
14	32-9080	Internal Kit-30 Spline "A"	1/2 Ton 63-66	Required Quantity: (1)	$120.95	Availability: In stock	Qty: Qty:
	"A" With GM 12 bolt.
15	34-5150	Pinion Shaft w/o DANA	1/2 Ton 60-66	Required Quantity: (1)	$11.92	Availability: In stock	Qty: Qty:
16	30-0614	Washer-Gear	1/2 Ton 66	Required Quantity: (2)	$5.04	Availability: In stock	Qty: Qty:
17	30-0613	Side Gear Washer	1/2 Ton 64-66	Required Quantity: (2)	$3.55	Availability: In stock	Qty: Qty:
18	30-0481	Pinion Shaft Lock Screw	1/2 Ton 60-66	Required Quantity: (1)	$7.55	Availability: In stock	Qty: Qty:
19	34-0466	Pinion Bearing-Rear Without DANA	1/2 Ton 60-66	Required Quantity: (1)	$28.48	Availability: In stock	Qty: Qty:
20	30-0471	Pinion Bearing-Front "B"	1/2 Ton 60-63	Required Quantity: (1)	$28.95	Availability: In stock	Qty: Qty:
	"B" With GM 10 bolt.
	34-0462	Pinion Bearing-Front "A"	1/2 Ton 63-66	Required Quantity: (1)	$16.75	Availability: In stock	Qty: Qty:
	"A" With GM 12 bolt.
21	34-0145	Pinion Oil Seal "B"	1/2 Ton 60-63	Required Quantity: (1)	$6.95	Availability: In stock	Qty: Qty:
	"B" With GM 10 bolt.
	34-0154	Pinion Oil Seal "A"	1/2 Ton 63-66	Required Quantity: (1)	$3.95	Availability: In stock	Qty: Qty:
	"A" With GM 12 bolt.
	45-0131-C	Pinion Oil Seal "C"	1/2 Ton 60-66	Required Quantity: (1)	$4.95	Availability: In stock	Qty: Qty:
	"C" With DANA 44.
22	30-0687	Washer	1/2 Ton 60-66	Required Quantity: (1)	$5.95	Availability: In stock	Qty: Qty:
23	30-0890	Nut-Pinion	1/2 Ton 60-66	Required Quantity: (1)	$6.05	Availability: In stock	Qty: Qty:
24	30-1970	Filler Plug	1/2 Ton 60-66	Required Quantity: (1)	$2.65	Availability: In stock	Qty: Qty:

California Residents: Prop 65 Warning

Vehicle application

Includes Parts for the Following Models:

Chevy Models

C10 Pickup (1960, 1961, 1962, 1963, 1964, 1965, 1966)
K10 Pickup (1960, 1961, 1962, 1963, 1964, 1965, 1966)

GMC Models

C1000 Pickup (1960, 1961, 1962, 1963, 1964, 1965, 1966)
K1000 Pickup (1960, 1961, 1962, 1963, 1964, 1965, 1966)
