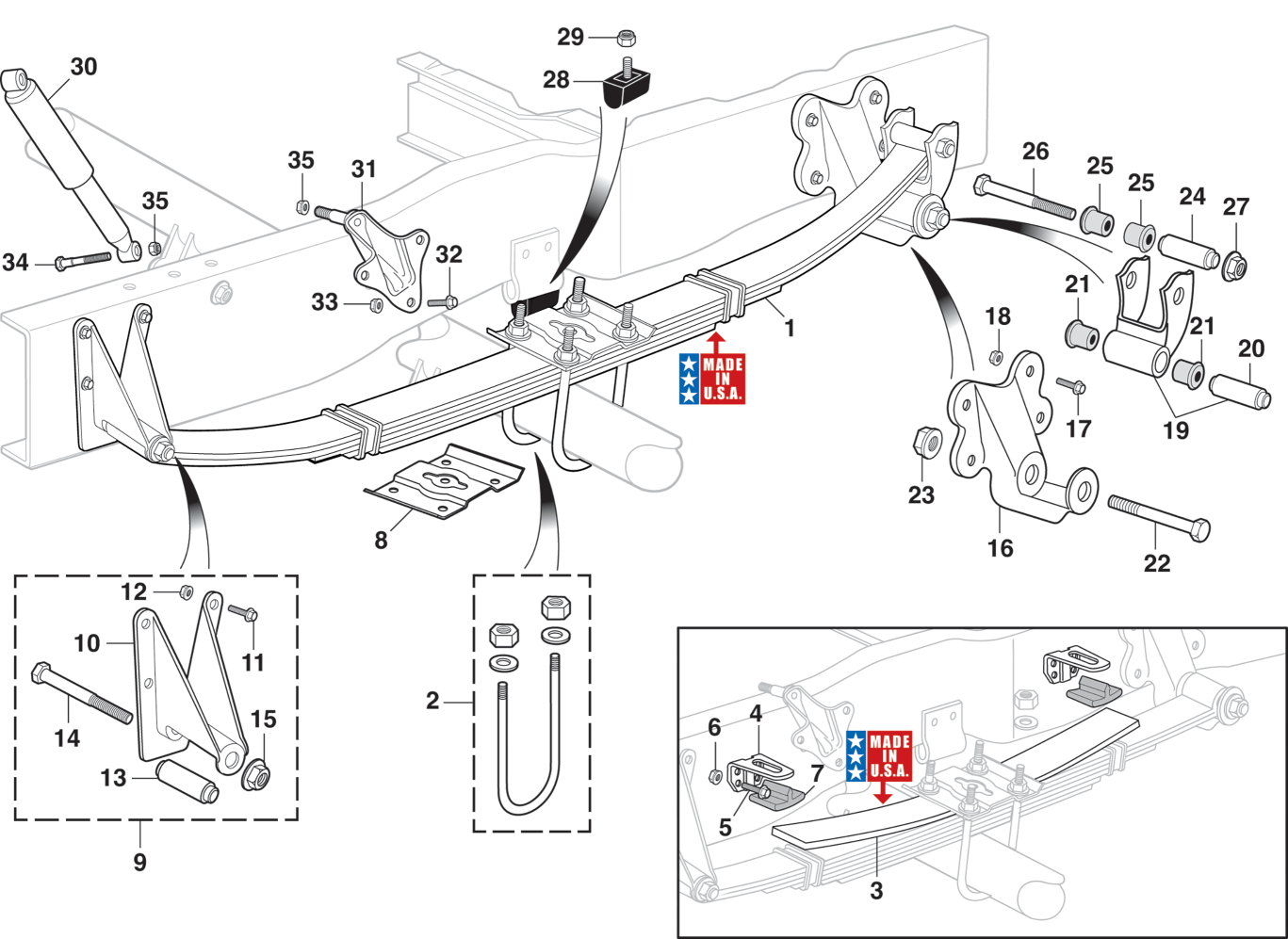

F100 F150 1980-96
|
|
Leaf Spring Components
|
|
2
|
40-0393
|
U-Bolt "B" 2 Wheel Drive
|
F100 F150 80-96
|
(4)
|
|
|
|
|
|
"B" With auxiliary springs.
|
|
|
40-0395
|
U-Bolt "C" 2 Wheel Drive
|
F100 F150 80-96
|
(4)
|
|
|
|
|
|
"C" Without auxiliary springs.
|
|
Auxiliary Leaf Spring and Components
|
|
3
|
45-2906
|
Auxiliary Leaf Spring 2 Wheel Drive
|
F150 80-96
|
(2)
|
|
|
|
|
|
4
|
45-1212
|
Bracket 2 Wheel Drive
|
F150 80-96
|
(4)
|
|
|
|
|
|
5
|
40-0591
|
Bolt 2 Wheel Drive
|
F150 80-96
|
(8)
|
|
|
|
|
|
6
|
50-0811
|
Torque Lock Nut 2 Wheel Drive
|
F150 80-96
|
(8)
|
|
|
|
|
|
7
|
40-1866
|
Bumper 2 Wheel Drive
|
F150 80-96
|
(4)
|
|
|
|
|
|
Leaf Spring Seat
|
|
8
|
45-1210
|
Spring Seat 2 Wheel Drive
|
F100 F150 80-96
|
(2)
|
|
|
|
|
|
Front Spring Hanger and Components
|
|
9
|
45-1309
|
Hanger Assembly-Front 2 Wheel Drive
|
F100 F150 80-96
|
(2)
|
|
|
|
|
|
11
|
50-0226
|
Bolt 2 Wheel Drive
|
F100 F150 80-96
|
(8)
|
|
|
|
|
|
12
|
40-0819
|
Torque Lock Nut 2 Wheel Drive
|
F100 F150 80-96
|
(8)
|
|
|
|
|
|
13
|
45-1401
|
Bushing-Spring Eye-Front 2 Wheel Drive
|
F100 F150 80-96
|
(2)
|
|
|
|
|
|
14
|
40-0263
|
Bolt 2 Wheel Drive
|
F100 F150 80-96
|
(2)
|
|
|
|
|
|
15
|
40-0840
|
Torque Lock Nut 2 Wheel Drive
|
F100 F150 80-96
|
(2)
|
|
|
|
|
|
Rear Spring Hanger and Components
|
|
16
|
45-1377
|
Rear Spring Hanger 2 Wheel Drive
|
F100 F150 80-96
|
(2)
|
|
|
|
|
|
17
|
40-0591
|
Bolt 2 Wheel Drive
|
F100 F150 80-96
|
(8)
|
|
|
|
|
|
18
|
50-0811
|
Torque Lock Nut 2 Wheel Drive
|
80-96
|
(8)
|
|
|
|
|
|
19
|
45-1384
|
Spring Shackle-Rear "D" 2 Wheel Drive
|
F100 F150 82-96
|
(2)
|
|
|
|
|
|
"D" Shackle bushing is included.
|
|
20
|
45-1402
|
Bushing-Shackle 2 Wheel Drive
|
F100 F150 80-81
|
(2)
|
|
|
|
|
|
|
45-1402
|
Bushing-Shackle 2 Wheel Drive
|
F150 86-96
|
(2)
|
|
|
|
|
|
21
|
50-5382
|
Bushing-Shackle 2 Wheel Drive
|
F100 F150 82-85
|
(4)
|
|
|
|
|
|
22
|
40-0263
|
Bolt 2 Wheel Drive
|
F100 F150 80-96
|
(2)
|
|
|
|
|
|
23
|
40-0840
|
Torque Lock Nut 2 Wheel Drive
|
F100 F150 80-96
|
(2)
|
|
|
|
|
|
24
|
45-1402
|
Bushing-Spring Eye-Rear 2 Wheel Drive
|
F100 F150 80-81
|
(2)
|
|
|
|
|
|
|
45-1402
|
Bushing-Spring Eye-Rear 2 Wheel Drive
|
F150 86-96
|
(2)
|
|
|
|
|
|
25
|
50-5382
|
Bushing-Spring Eye-Rear 2 Wheel Drive
|
F100 F150 82-85
|
(4)
|
|
|
|
|
|
26
|
40-0263
|
Bolt 2 Wheel Drive
|
F100 F150 80-96
|
(2)
|
|
|
|
|
|
27
|
40-0840
|
Torque Lock Nut 2 Wheel Drive
|
F100 F150 80-96
|
(2)
|
|
|
|
|
|
Axle Bumpers
|
|
28
|
40-1859
|
Axle Bumper "C" 2 Wheel Drive
|
F100 F150 80-92
|
(2)
|
|
|
|
|
|
"C" Without auxiliary springs.
|
|
|
40-1858
|
Axle Bumper "B" 2 Wheel Drive
|
F100 F150 80-92
|
(2)
|
|
|
|
|
|
"B" With auxiliary springs.
|
|
|
40-1858
|
Axle Bumper 2 Wheel Drive
|
F150 93-96
|
(2)
|
|
|
|
|
|
29
|
40-0912
|
Nut-Axle Bumper
|
F100 F150 80-96
|
(2)
|
|
|
|
|
|
Shock Absorbers
|
|
30
|
48-1665
|
Shock-KYB Gas-A-Just 2 Wheel Drive
|
F100 F150 80-83
|
(2)
|
|
|
|
|
|
|
48-1666
|
Shock-KYB Gas-A-Just 2 Wheel Drive
|
F150 84-96
|
(2)
|
|
|
|
|
|
|
48-1636
|
Shock-KYB GR2 Gas 2 Wheel Drive
|
F100 F150 80-83
|
(2)
|
|
|
|
|
|
|
48-1638
|
Shock-KYB GR2 Gas 2 Wheel Drive
|
F150 84-96
|
(2)
|
|
|
|
|
|
31
|
45-1460
|
Rear Shock Bracket-Upper 2 Wheel Drive
|
F100 F150 80-96
|
(2)
|
|
|
|
|
|
32
|
40-0591
|
Bolt 2 Wheel Drive
|
F100 F150 80-96
|
(6)
|
|
|
|
|
|
33
|
50-0811
|
Torque Lock Nut 2 Wheel Drive
|
80-96
|
(6)
|
|
|
|
|
|
34
|
40-0353
|
Bolt-Lower Shock 2 Wheel Drive
|
F100 F150 80-96
|
(2)
|
|
|
|
|
|
35
|
40-0819
|
Nut 2 Wheel Drive
|
F100 F150 80-96
|
(2)
|
|
|
|
|
