Rear Suspension

2004-08  F150
Check the certification label on the inside driver's side door for leaf spring codes. Rear leaf springs include spring eye bushings, upper spacer and spring inserts.

Product Details

Don't forget! Shocks are an often overlooked and very important part on your ride. Are you experiencing that embarrassing bounce when you hit a dip or bump? Do you experience annoying brake dive or acceleration squat? Limit that unsafe roll or sway when cornering! Regain control of spring and suspension movement.
Gas-A-Just Shock Absorbers
You can depend on Gas-A-Just for unsurpassed road control. KYB Gas-A-Just shocks are America's best selling monotube gas shocks. They feature higher gas pressure to keep your truck's tires glued to the road surface. They provide unsurpassed control on even the most demanding roads. Monotube design and high pressure gas eliminate the age old problem of performance fade by eliminating aeration and foaming, a problem with other shocks that use two-tube construction that allows air to mix with fluid.
GR-2 Gas Shock Absorbers
The KYB GR-2 Shock Absorbers give you a satin ride at an economical price. They feature lower pressure for riding comfort, along with improved handling and response only gas shocks can provide. The GR-2 gas shock absorber is the economical way to step up from hydraulic shocks to the quality ride and control of gas.
Note: GR-2 and Excel-G (XLG) shock absorbers are identical except for the product name and paint color.
Heavy-Duty Gas-Charged Shocks
Heavy-Duty (HD) Gas-Charged Shocks limit unsafe roll or sway when cornering and regain control of spring and suspension movement.

2WD = Two Wheel Drive
4WD = Four Wheel Drive
GVW = Gross Vehicle Weight Rating

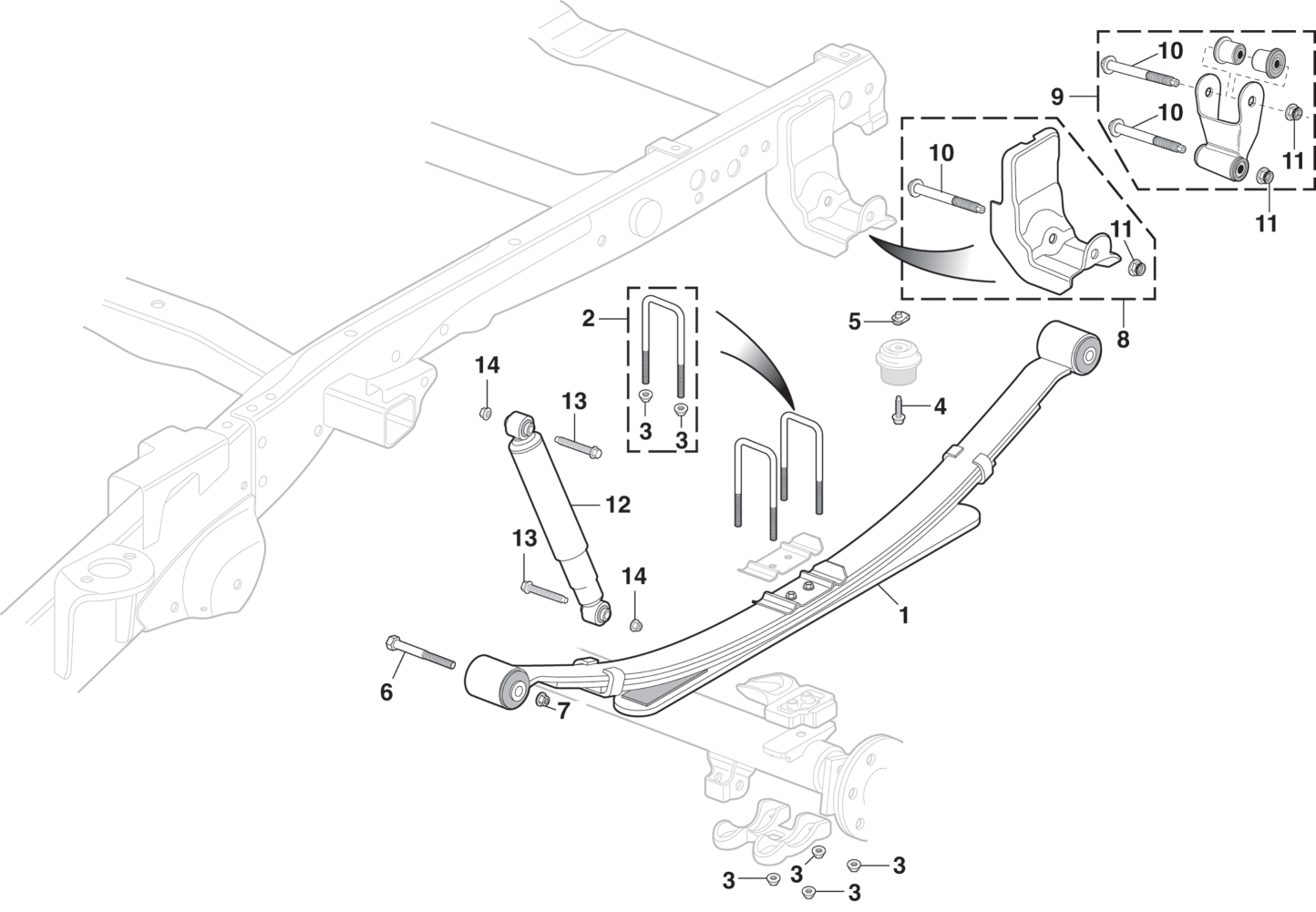

Full Parts List

Part Description Application Required quantity Price Stock status Qty
1 45-3088 Leaf Spring 3 Leaf   1500lb Capacity 04-08 (2)
$299.95

Availability: In stock
45-3090 Leaf Spring 4 Leaf   1900lb Capacity 04-08 (2)
$279.95

Availability: In stock
2 40-0586 U-Bolt               "A""B" 2 Wheel Drive F150 06-08 (4)
$15.95

Availability: In stock
"A" Models without 8,200 lb. GVW package.
"B" Models with 22" Wheels.
40-0587 U-Bolt                  "A" 4 Wheel Drive F150 04-08 (4)
$22.95

Availability: Out of stock
"A" Models without 8,200 lb. GVW package.
40-0589 U-Bolt                  "C" 4 Wheel Drive F150 04-08 (4)
$21.95

Availability: In stock
"C" Models with 8,200 lb. GVW package.
3 40-0840     Torque Lock Nut     "A" F150 04-08 (8)
$1.95

Availability: In stock
"A" Models without 8,200 lb. GVW package.
40-0866     Torque Lock Nut     "C" F150 04-08 (8)
$2.95

Availability: In stock
"C" Models with 8,200 lb. GVW package.
4 40-0309     Bolt                   F150 04-08 (2)
$2.95

Availability: Out of stock
5 40-0949     U-Nut                   F150 04-08 (2)
$1.45

Availability: In stock
6 40-0564     Bolt                   F150 04-08 (2)
$17.95

Availability: In stock
7 40-0866     Torque Lock Nut         F150 04-08 (2)
$2.95

Availability: In stock
8 45-1289 Spring Hanger-Rear         F150 04-08 (2)
$99.95

Availability: In stock
9 45-1291 Spring Shackle w/Bushing   F150 04-08 (2)
$27.95

Availability: In stock
10 50-0295     Bolt                "A" F150 04-08 (4)
$13.45

Availability: In stock
"A" Models without 8,200 lb. GVW package.
11 40-0840     Torque Lock Nut     "A" F150 04-08 (4)
$1.95

Availability: In stock
"A" Models without 8,200 lb. GVW package.
40-0866     Torque Lock Nut     "C" F150 04-08 (4)
$2.95

Availability: In stock
"C" Models with 8,200 lb. GVW package.
12 48-1616 KYB GR2 Shock               2 Wheel Drive F150 04-08 (2)
$77.79

Availability: In stock
48-1617 KYB GR2 Shock               4 Wheel Drive F150 04-08 (2)
$55.11

Availability: In stock
13 40-0568     Bolt-Shock             F150 04-08 (4)
$10.95

Availability: In stock
14 40-0819     Nut-Shock               F150 04-08 (4)
$1.45

Availability: In stock

Vehicle application

Includes Parts for the Following Models:

Ford Models

  • F150 Pickup 2WD (2004, 2005, 2006, 2007, 2008)
  • F150 Pickup 4WD (2004, 2005, 2006, 2007, 2008)
